Treblemaker Slimline – Signature Treble Bleed System

(1 customer review)

£15.00

The Treblemaker Slimline is a variable treble bleed circuit that gives a vast array of flexibility. Any capacitor of your choice can soldered to the board! 6 Capacitors are included.

Whether you want a resistor in series, parallel or both, the ‘Treblemaker Slimline’ can accommodate. Each resistor can be switched on and off and is adjustable from around 10kOhms up to 500kOhms.

17 in stock (can be backordered)

SKU: V2Slim Category: Tag:

Description

We call the Treblemaker the ‘Signature Treble Bleed System’ for a reason. It’s more than just a variable treble bleed circuit. With a vast array of flexibility at your fingertips, you’ll soon find your signature sound suited to your gear and ear! Yet this is more simple than any other treble bleed in the world to try out and tweak. Plus you can always go back and adjust it if the need arises without any more soldering.

This is the solder only “Slimline” version. Any capacitor of your choice can soldered to the board! 6 sizes are included!

This solves the problem of a treble bleed that’s too brash sounding, or dull sounding when the volume is turned down on your guitar! Why compromise or make do? Try every circuit there is and fine tune the “Treblemaker” to your guitar.

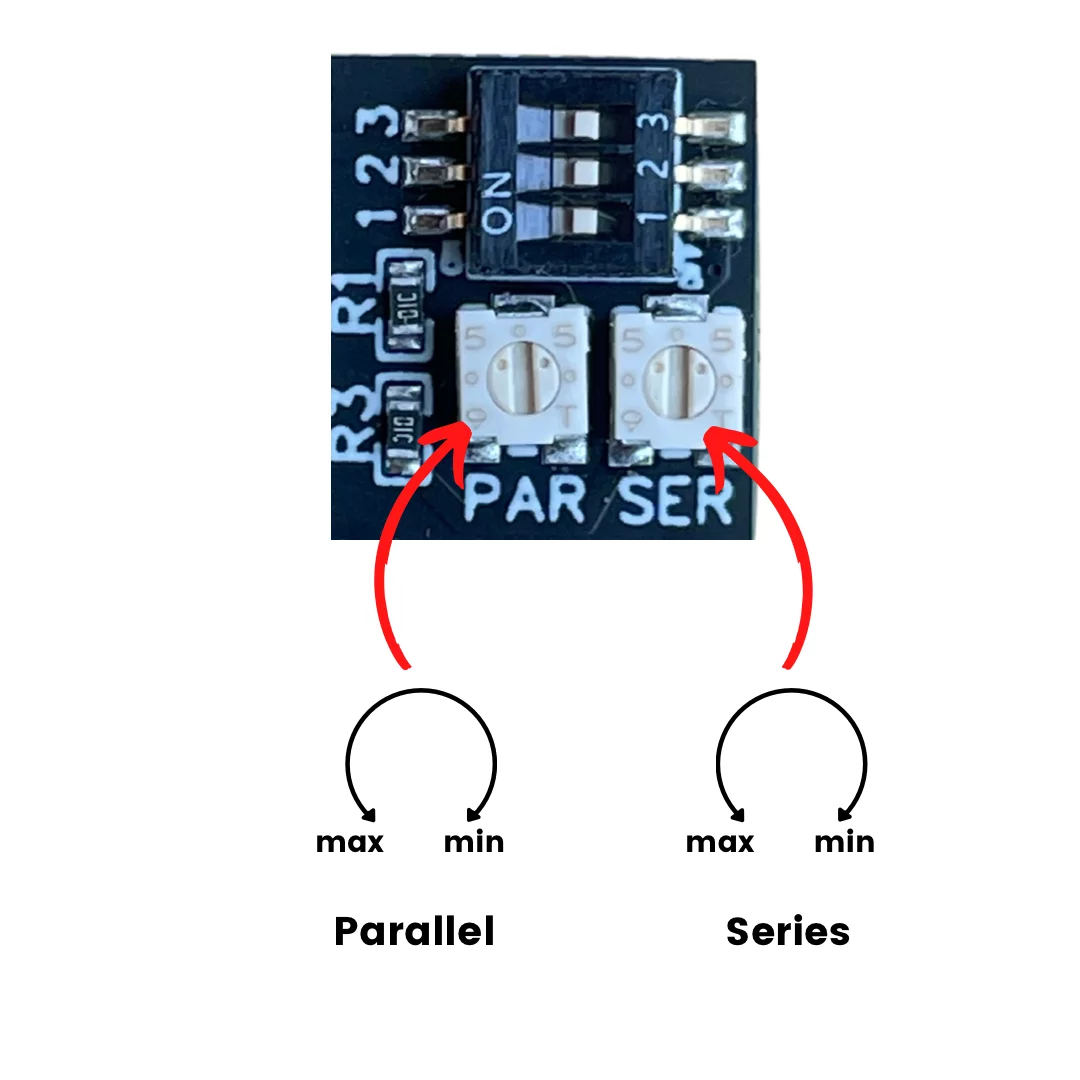

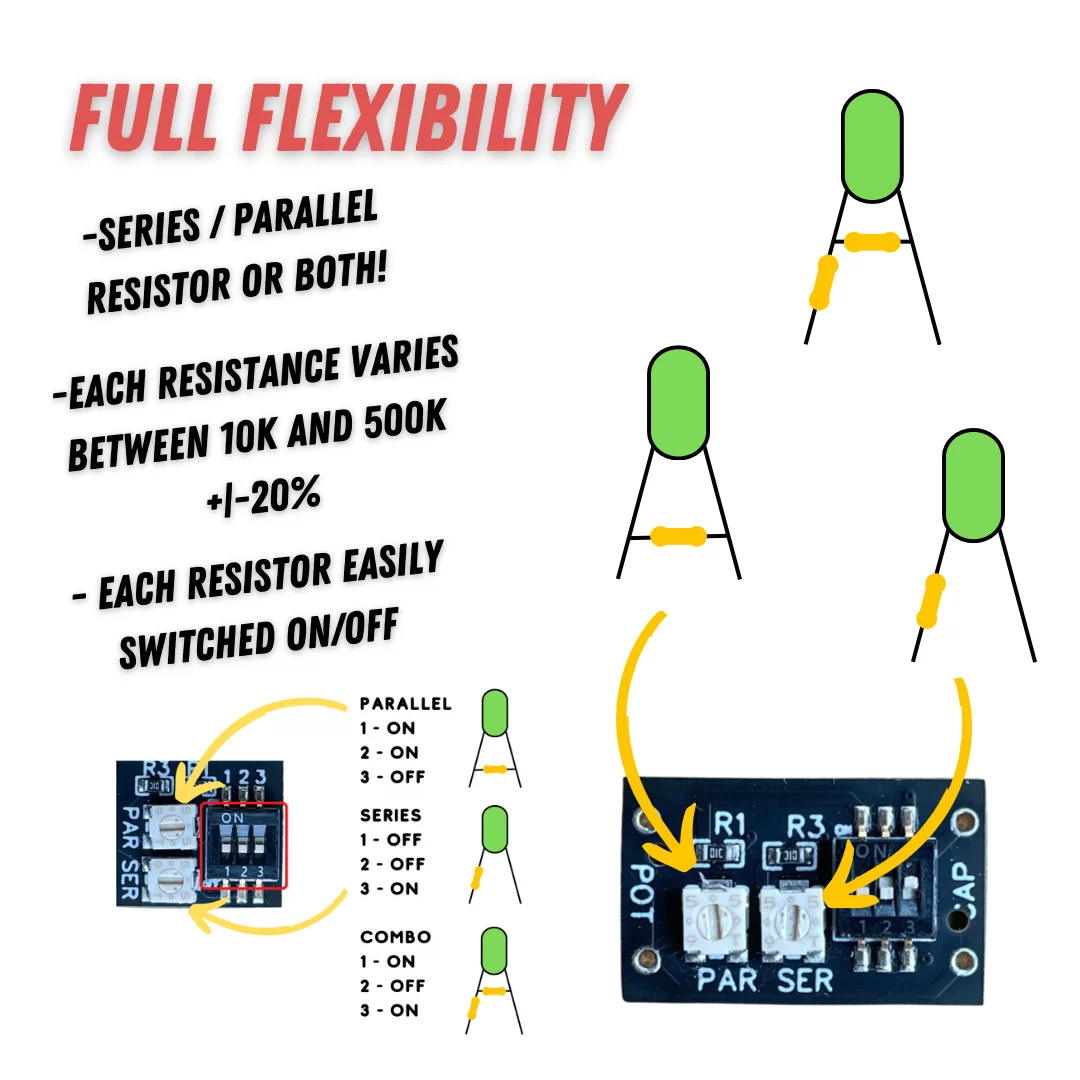

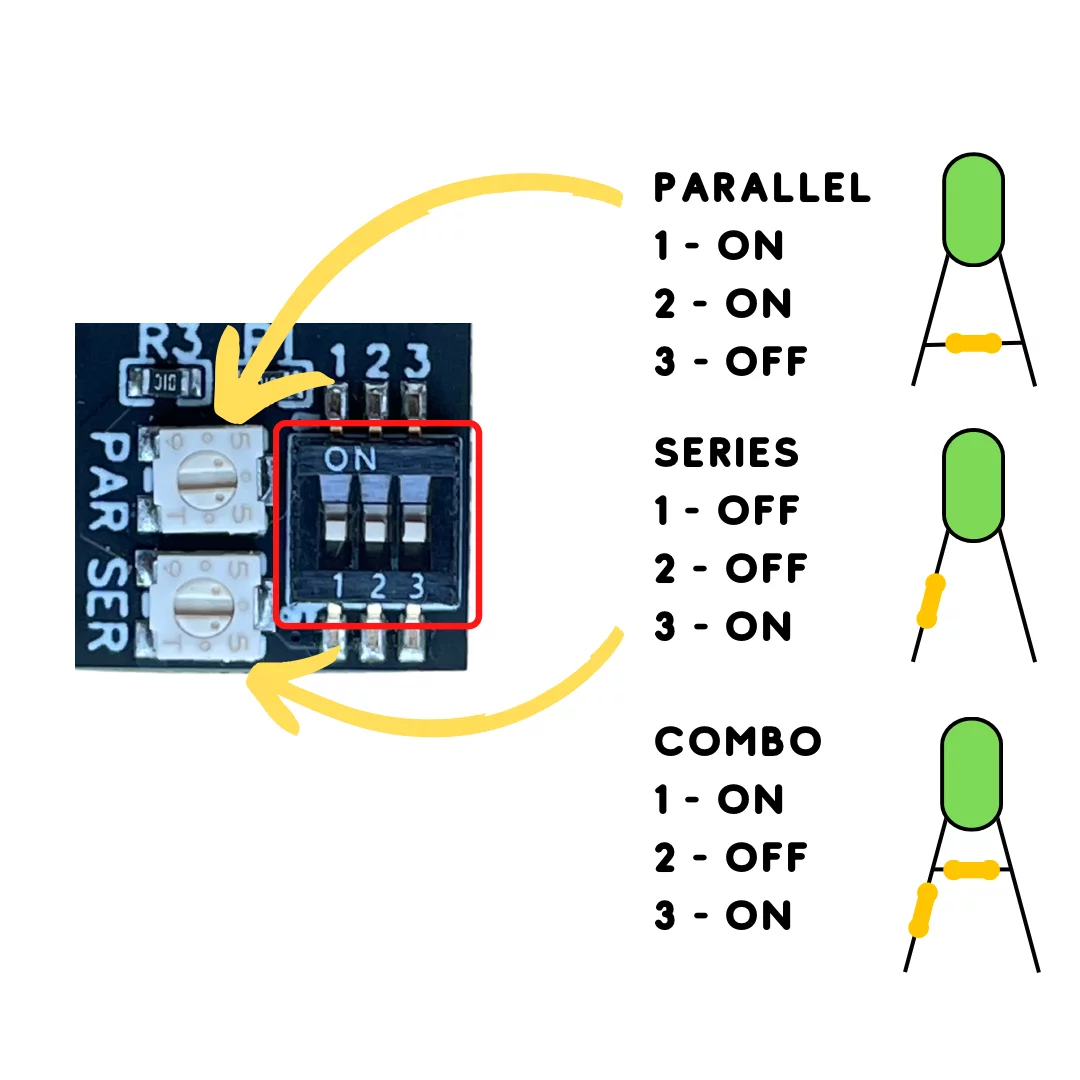

Whether you want a resistor in series, parallel or both, the ‘Treblemaker Slimline’ can accommodate. Each resistor can be switched on and off and is adjustable from around 10kOhms up to 500kOhms. So any circuit you want to try is possible!! Kinman, Duncan or a combination can be tried out.

This can even replicate the same circuit as the “Fender Tone Saver” with the advantage of being tweak-able to your pick-ups and cable length.

This is the direct solder version of the Treblemaker.

The Treblemaker reflects my solution to the frustration of not being able to easily try the different ways of doing treble bleeds/high pass filters.

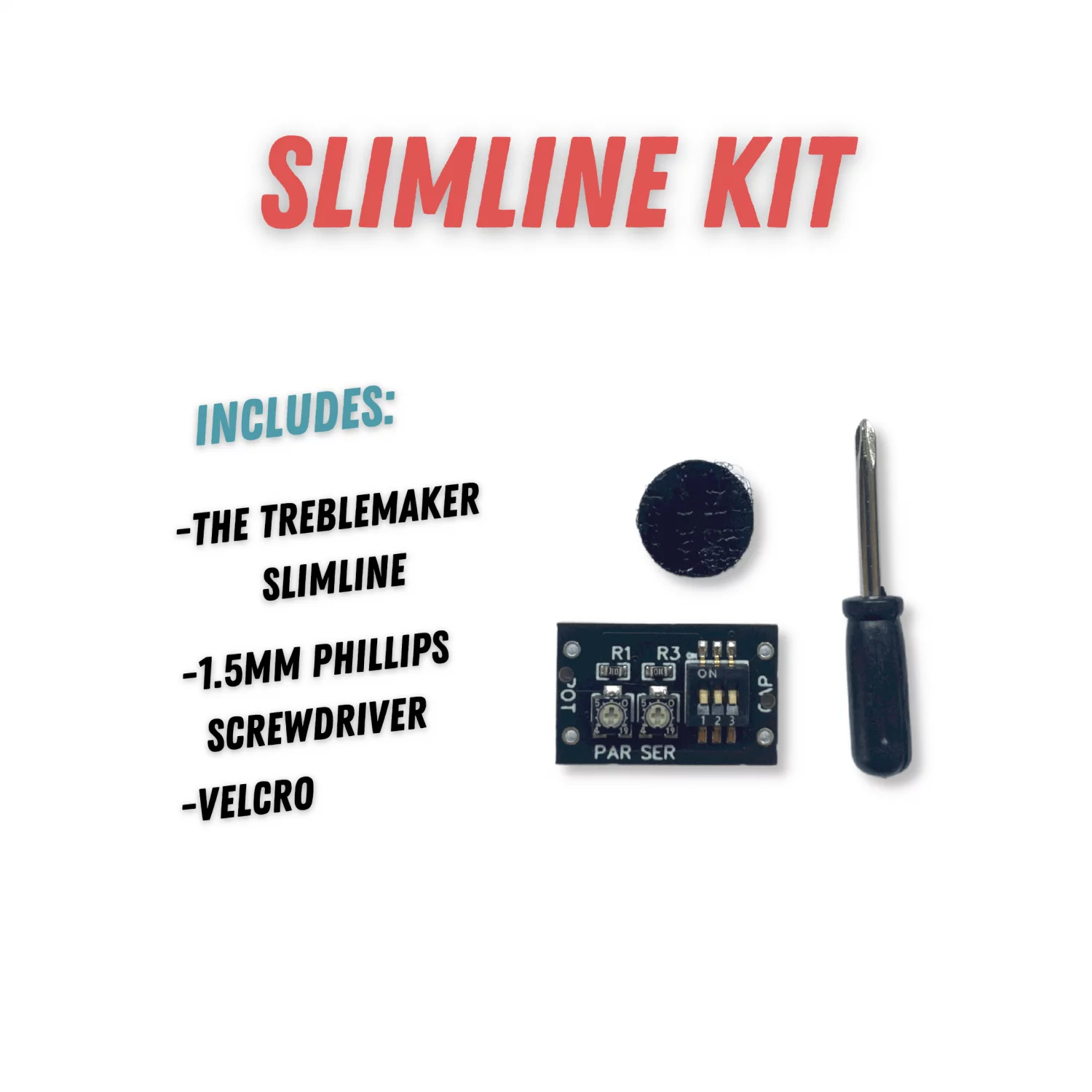

Parts Included

  • Adhesive backed velcro
  • Adjustment screwdriver
  • Treblemaker V2Slim
  • Instructions
  • Pack of 6 capacitors (470pF, 560pF, 680pF, 1nF, 1.2nF, 1.5nF)

Additional information

Weight20 g
Dimensions15 × 12 × 1 cm
Include Capacitors?

None Required, 6 Pack Mylar Polyester (470pF, 560pF, 680pF, 1nF, 1.2nF, 1.5nF)

Include Hookup Wire?

Not Required, Include Hookup Wire 10CM (+£1), Include Hookup Wire 25CM (+£2)
